Recommended Placement for ThunderBeat Speakers – AWOL Vision

The ThunderBeat system offers versatile installation options, including desktop placement, wall-mounting (brackets included in the package), or using dedicated speaker stands.

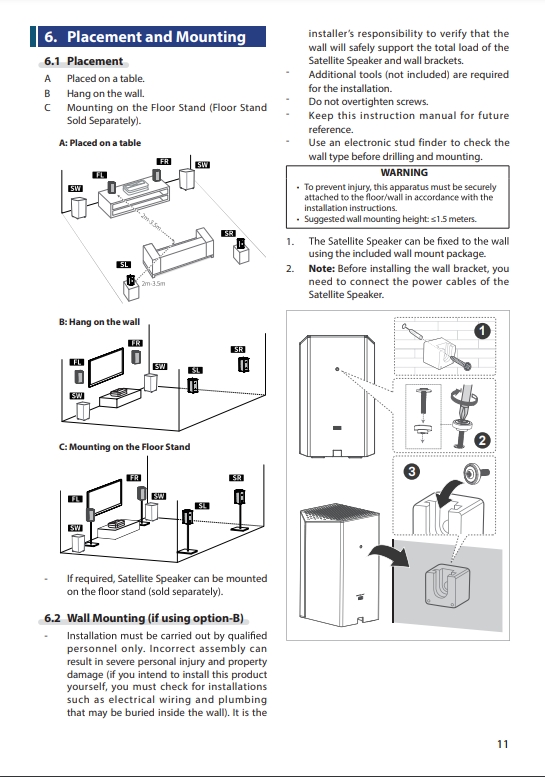

Generally, we recommend the following setup:

Subwoofer: Place directly on the floor.
Surround Speakers: Position at approximately 1 meter (3.3 feet) from the ground.

While these are our recommended guidelines, feel free to customize the placement to best suit your room layout and personal preference.

Question: How do I install the ThunderBeat surround speakers using the included wall-mount brackets?

Answer:

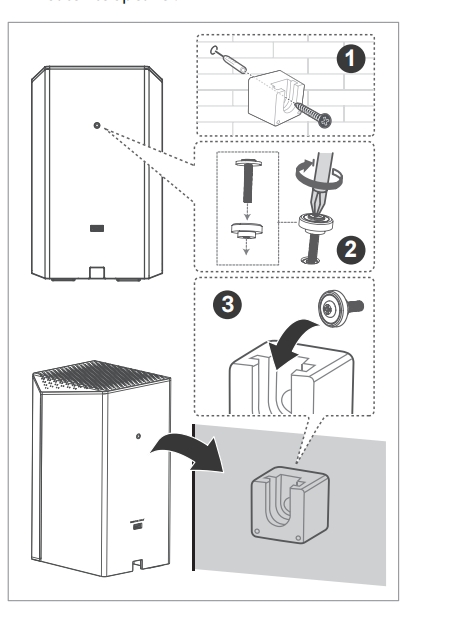

Please refer to the installation steps provided in your user manual. For a quick reference, the process is as follows:

Secure the base: Use the provided expansion screws to mount the bracket base firmly to the wall.
Attach the screw: Secure the secondary screw into the mounting hole located on the back of the satellite speaker.
Mount the speaker: Hang the speaker onto the wall bracket base to complete the installation.
